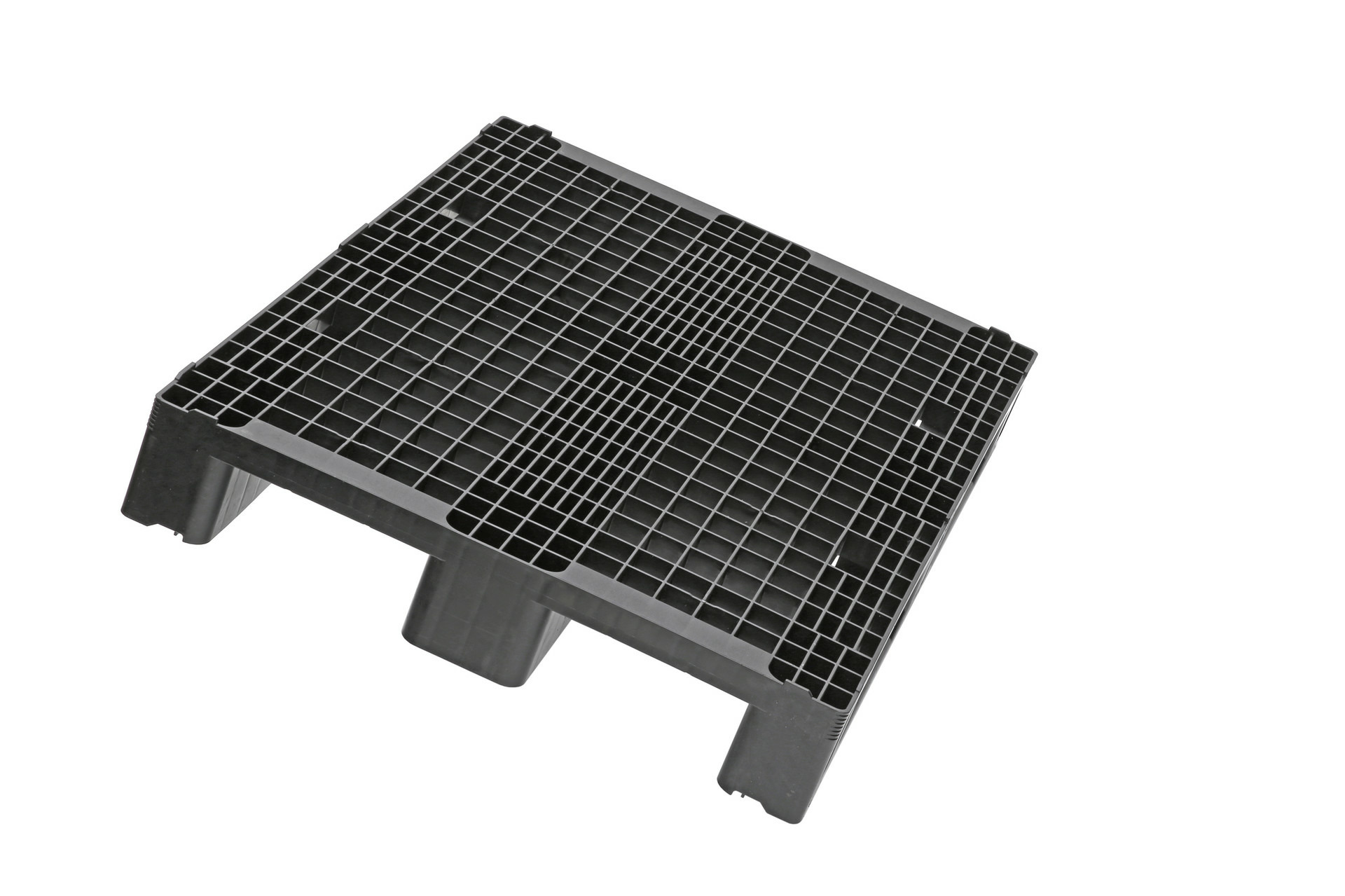

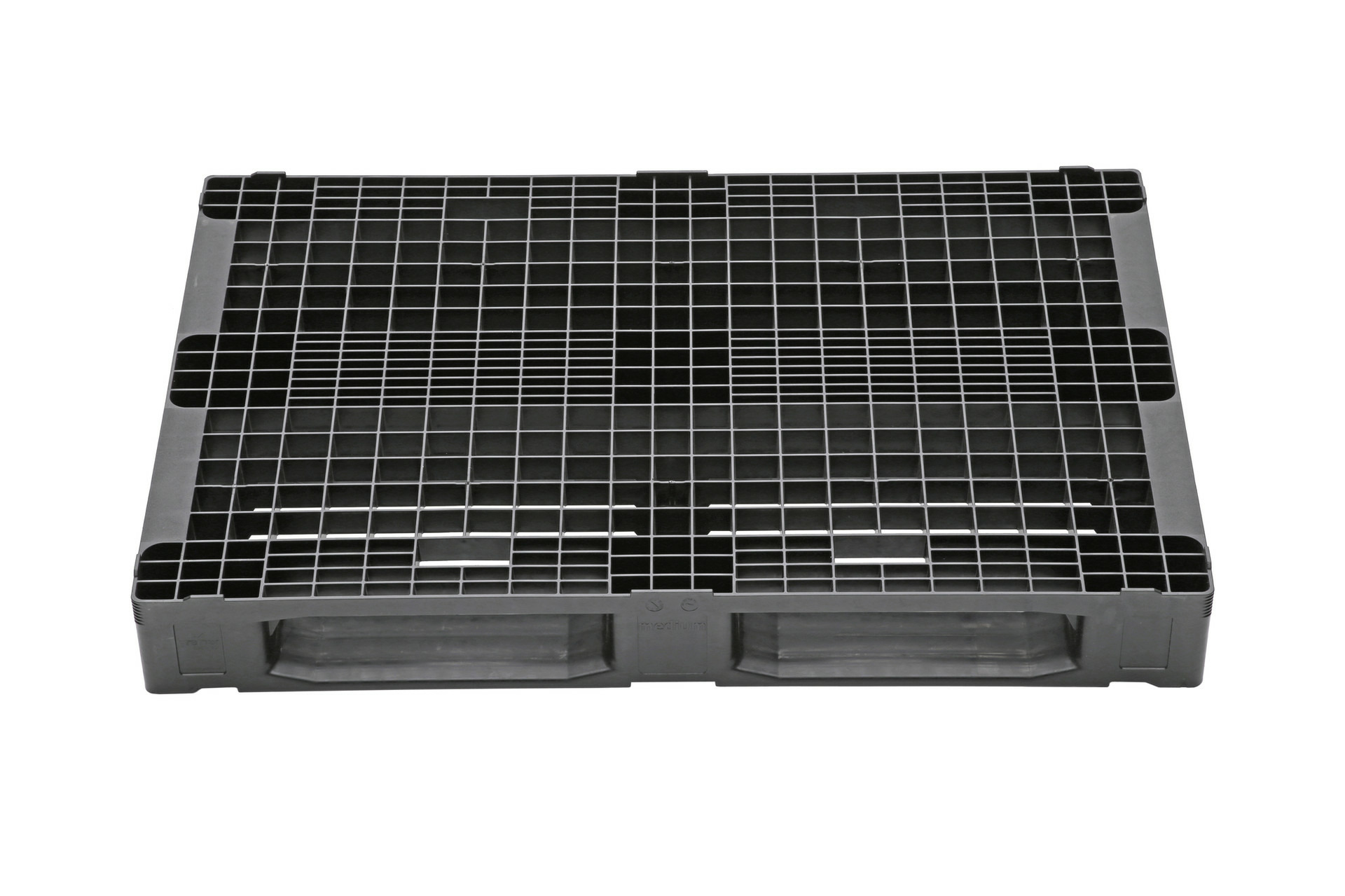

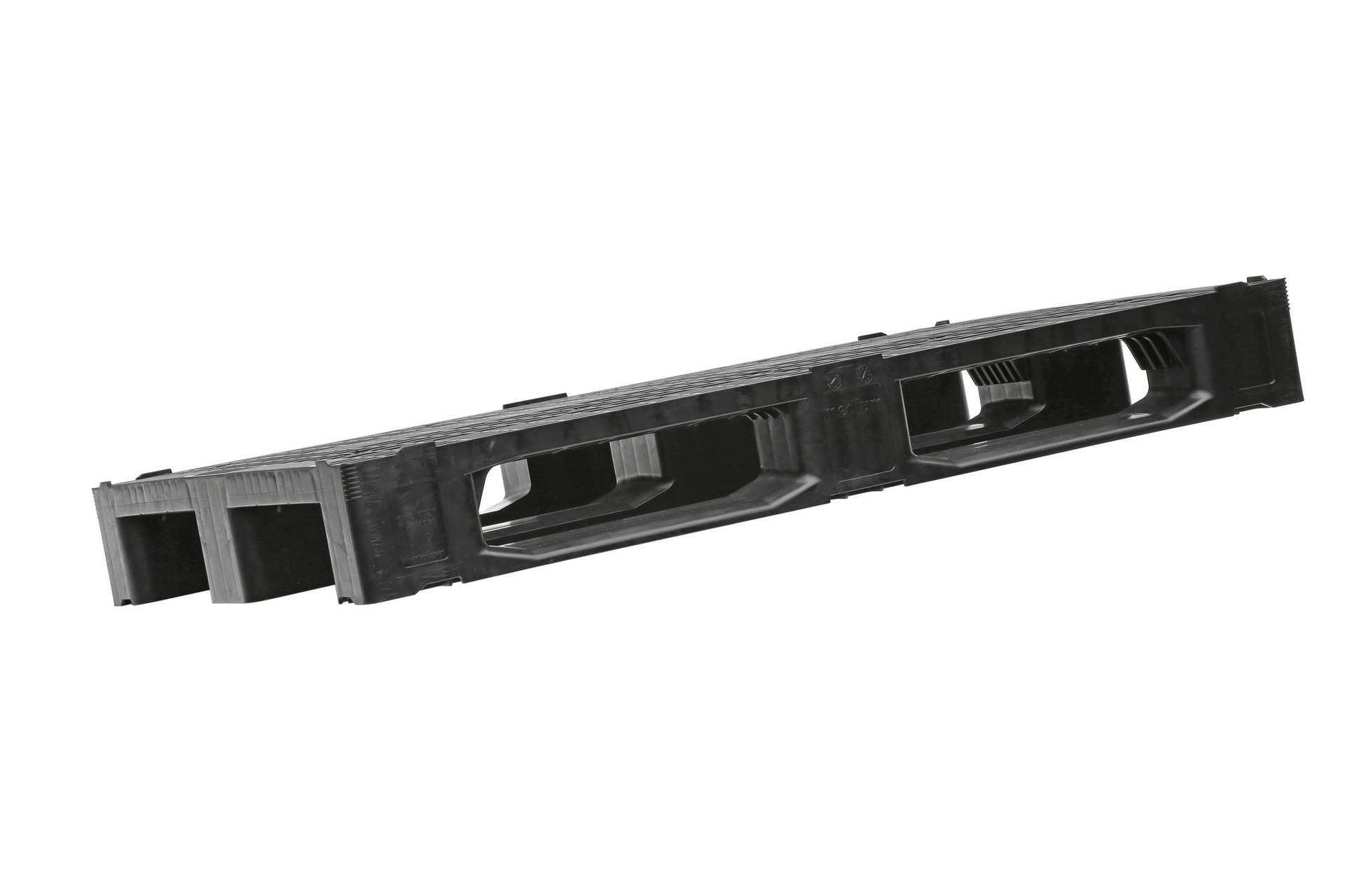

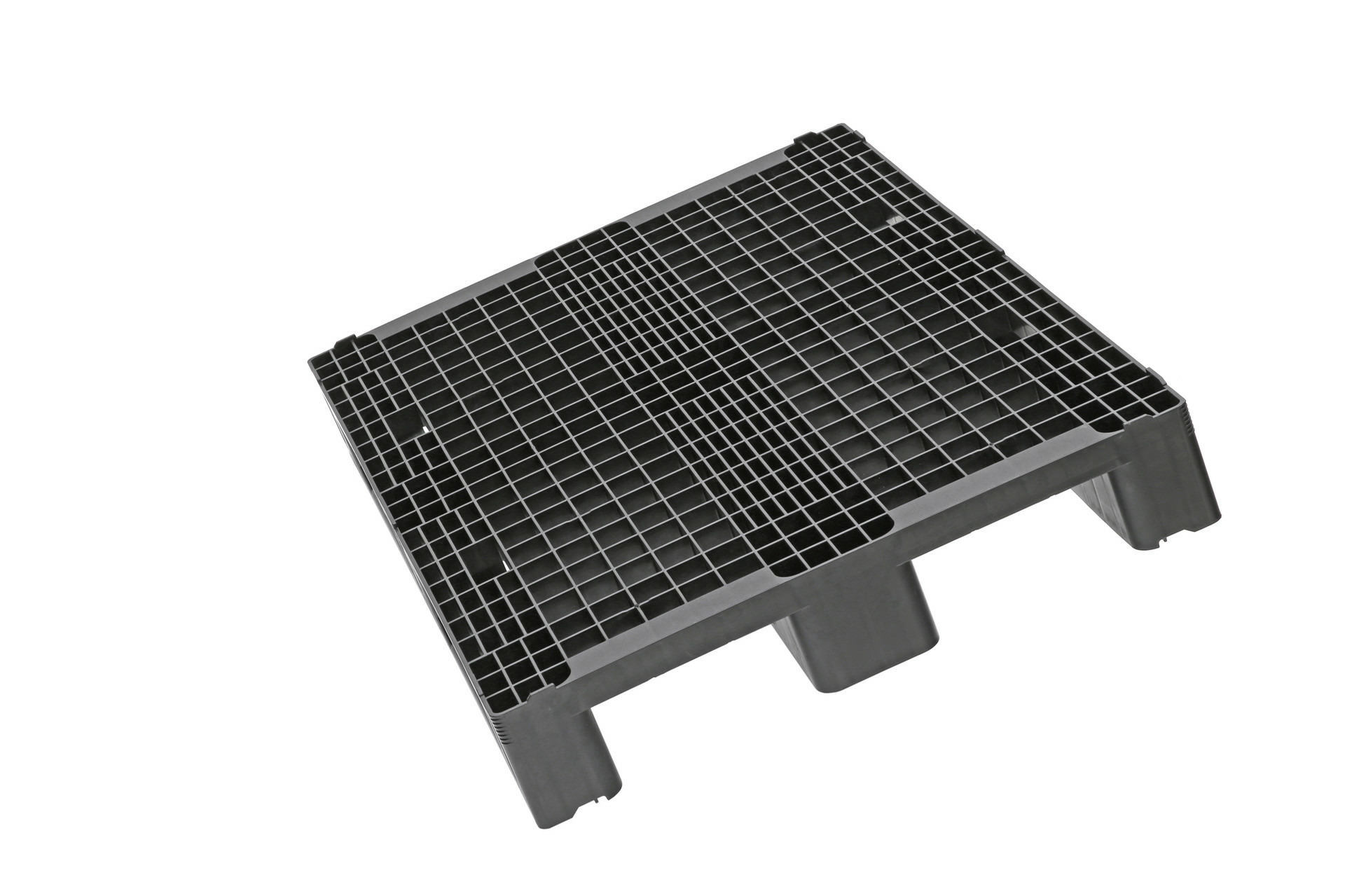

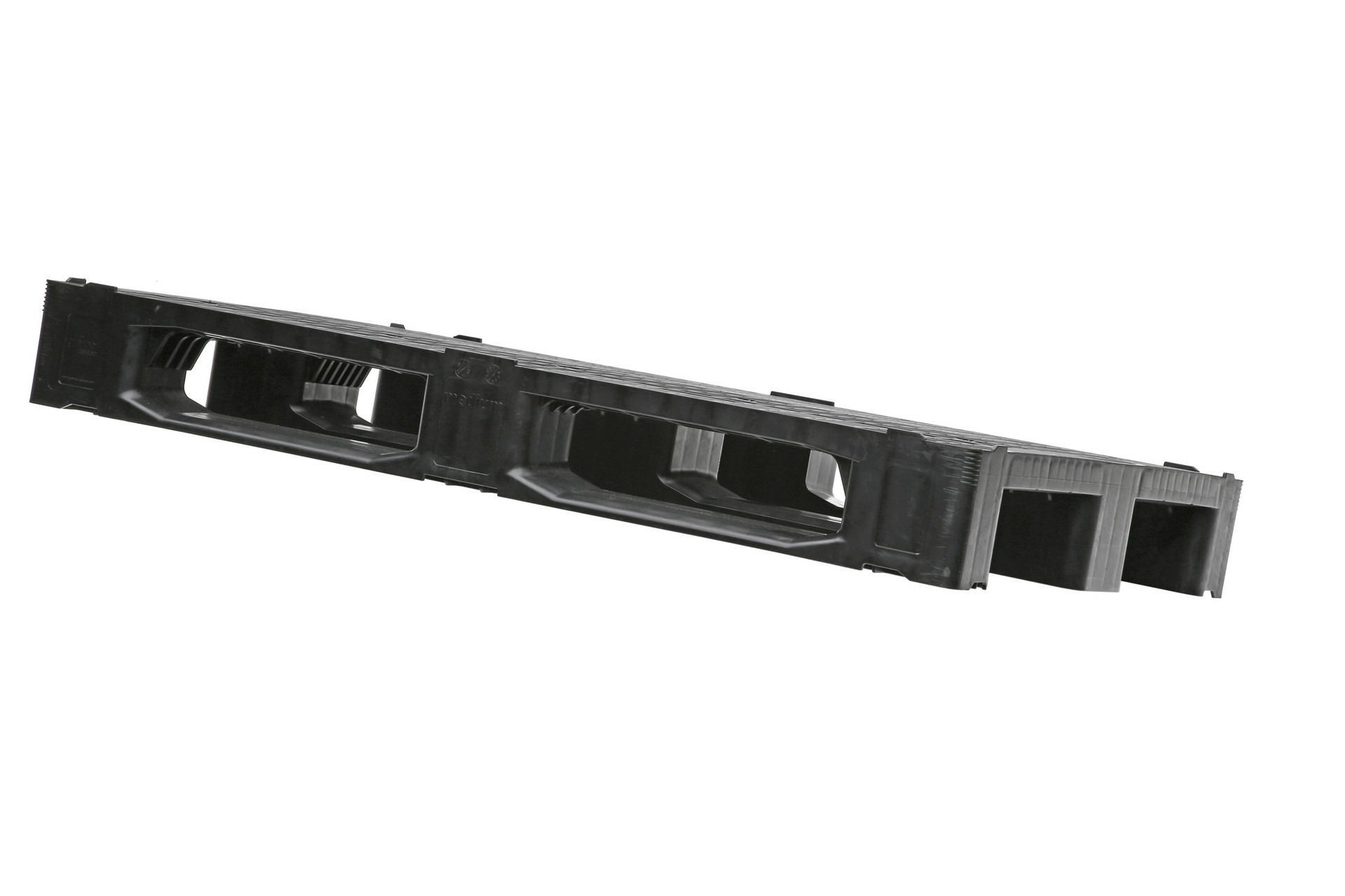

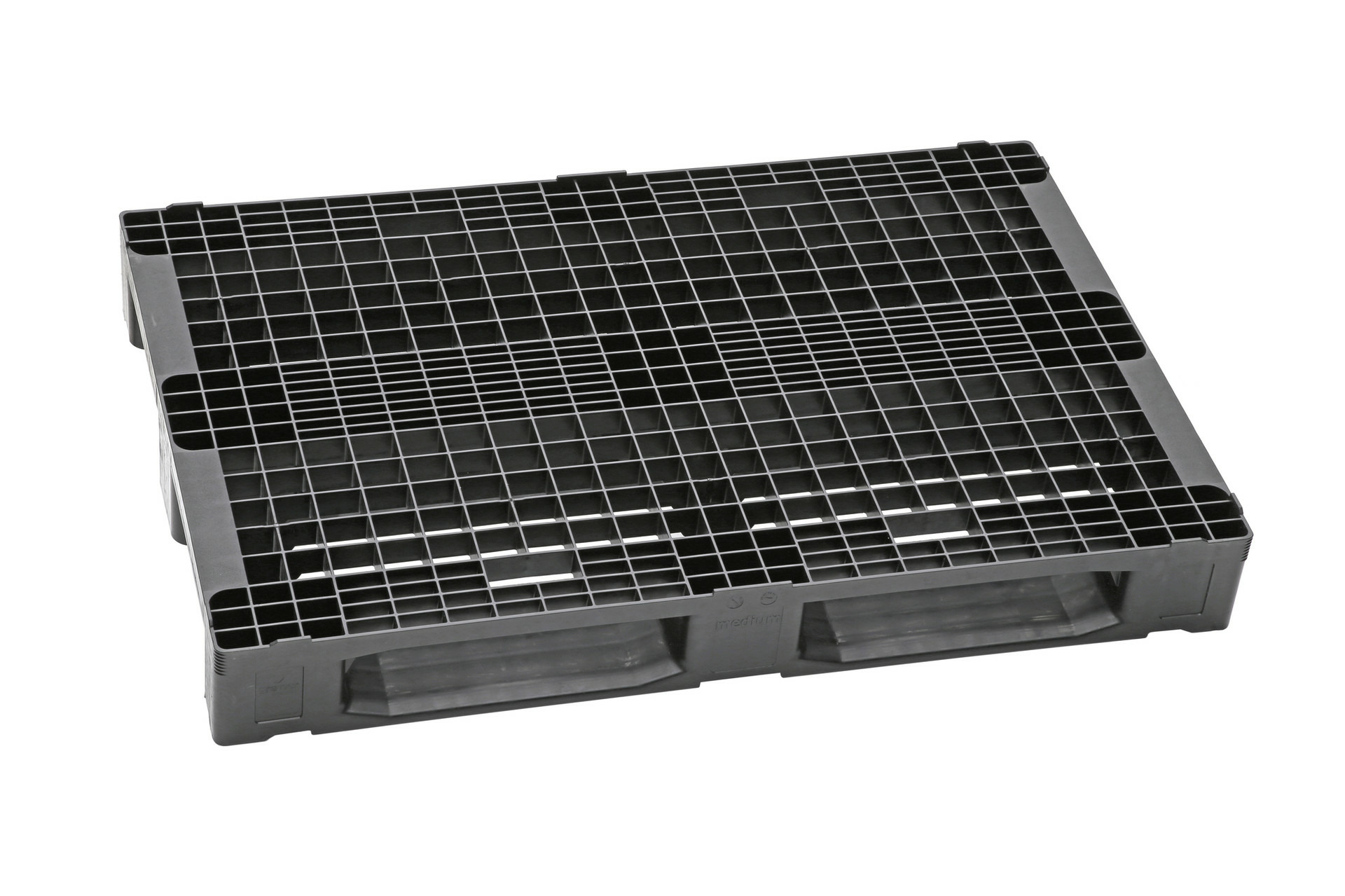

NEXTPACK Medium ESD 1208 3R

The new conductive medium pallet

SPECIFICATION

Dimensions: 800 x 1200 x 145 mm

Weight: 14,2 kg

Dynamic load: up to 1,0 t

Static load: up to 5,0 t

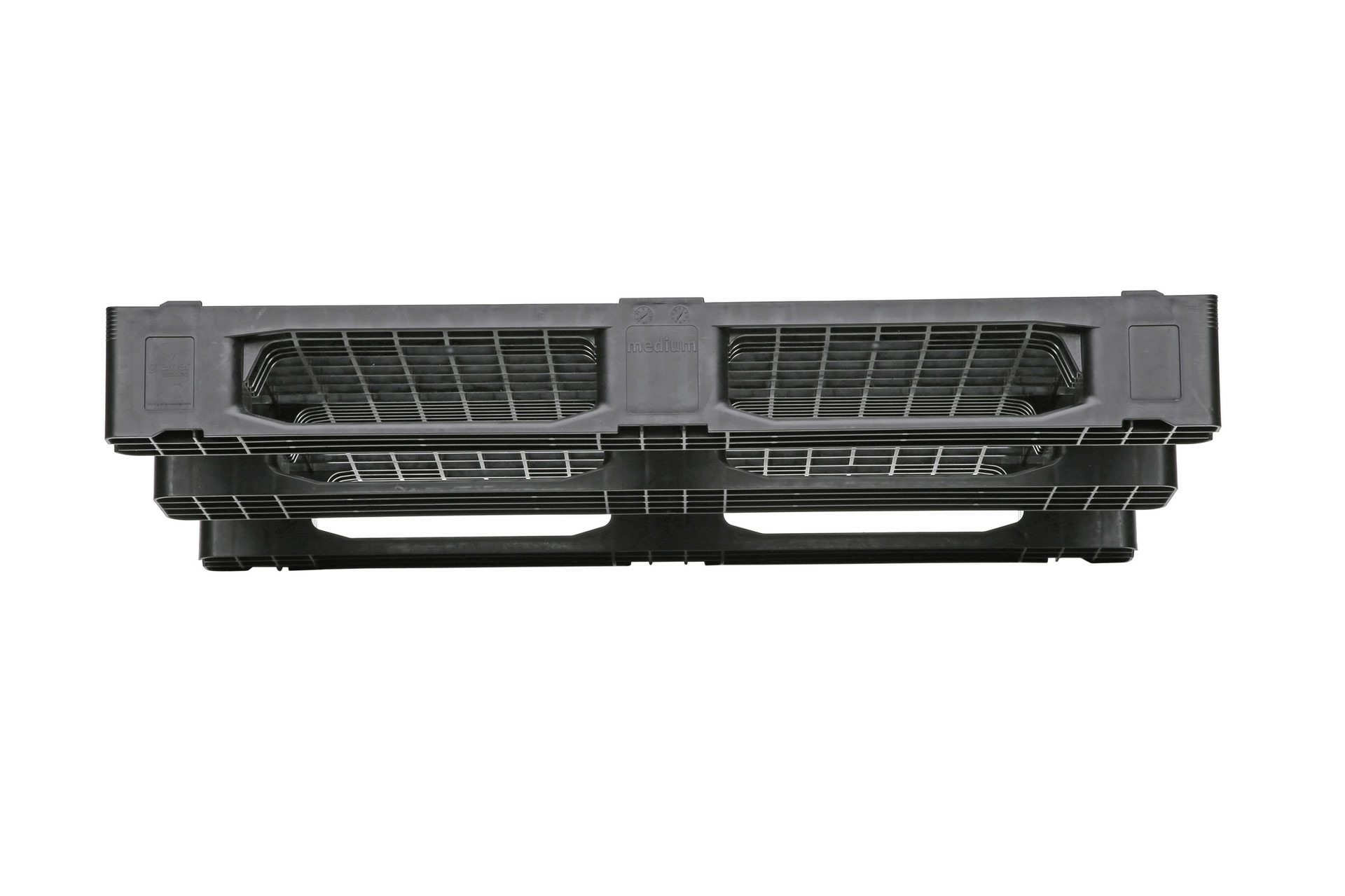

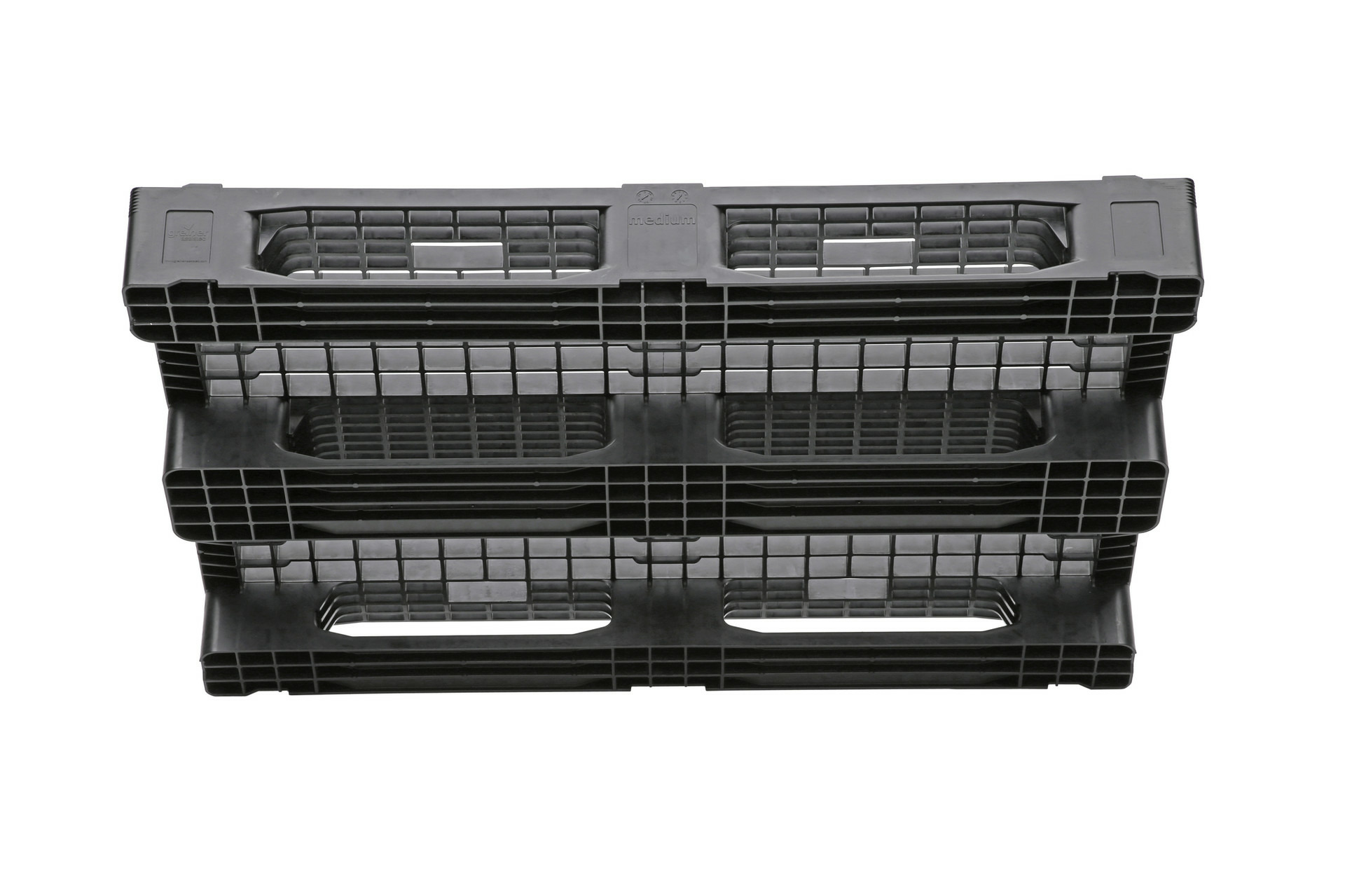

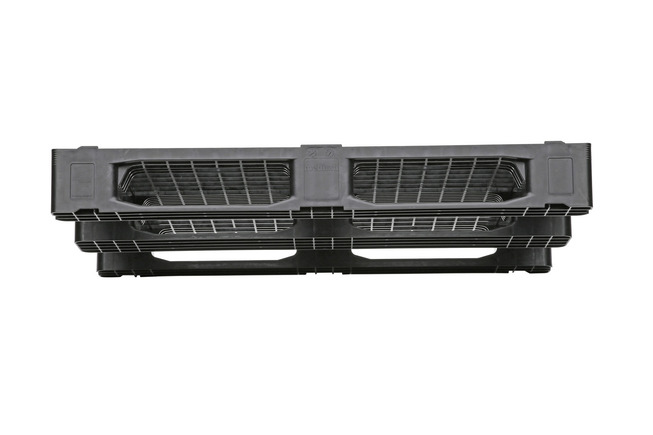

Nestable: up to 0,5 t

Material: PO

Working temperature range: -20 do +40 °C

Pallets per pitch: 2,32 m

Truck load: 528 units

Coloru: black

Characteristic: 10^4 bis 10^9 Ohm

The conductive medium pallet, especially designed for transporting electrostatic discharge sensitive devices, e.g. within automotive or electrical industry. Also available without ESD function.
