Airbag

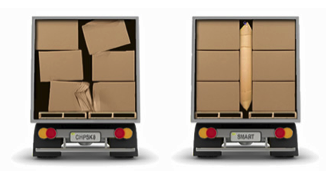

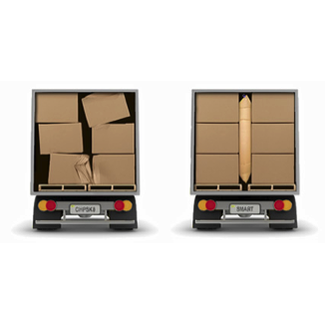

Most damages of cargo are caused during the shipment when the loads are not secured properly. Airbags provide perfect protection and fixation of the transported goods against possible damage.

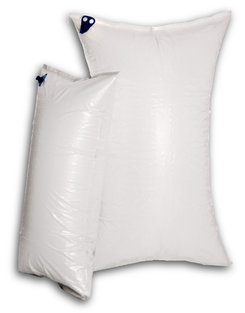

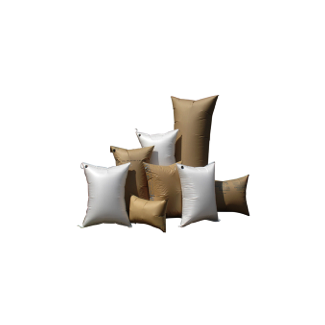

These airbags are used as transporting filling material in vehicles all around the world because of its fast and efficient inflating and easy handling. They can be used more than once. Airbags could bear pressure more than 9 tons.

Benefits:

Reliable protection of goods during transportation against damage
Easy to handle
Reduction in the loading and unloading time
Decreasing transportation costs
Wide range of application
Friendly to the environment
100% recyclable
Higher pressure, heat and shock resistance
Different outer shell

Dimensions (width x length)		Width after inflating		Applied height
500 x 1000 mm	20´´ x 40´´	250 mm	10 ´´	900 mm	36´´
600 x 900 mm	24´´ x 36´´	300 mm	12´´	800 mm	32´´
600 x 1200 mm	24´´ x 48´´	300 mm	12´´	1100 mm	44´´
800 x 1200 mm	32´´ x 48´´	400 mm	16´´	1100 mm	44´´
900 x 1200 mm	36´´ x 48´´	450 mm	18´´	1100 mm	44´´
900 x 1500 mm	36´´ x 60´´	450 mm	18´´	1400 mm	56´´
900 x 1800 mm	36´´ x 72´´	450 mm	18´´	1700 mm	68´´
900 x 2100 mm	36´´ x 84´´	450 mm	18´´	2000 mm	80´´
1000 x 1800 mm	40´´ x 72´´	500 mm	20´´	1700 mm	68´´
1000 x 2000 mm	40´´ x 80´´	500 mm	20´´	1900 mm	76´´
1000 x 2200 mm	40´´ x 86´´	500 mm	20´´	2100 mm	84´´
1000 x 2400 mm	40´´ x 96´´	500 mm	20´´	2300 mm	92´´
1200 x 2200 mm	48´´ x 86´´	600 mm	24´´	2100 mm	84´´
1200 x 2400 mm	48´´ x 96´´	600 mm	24´´	2300 mm	92´´
